Your panel, day by day.
Every panel we ship gets a unique URL like this one — accessible by QR sticker on the panel door. As-built drawings, type-test reports, spare-parts BOM and AMC schedule, all in one place. Forever.
Customer
Sugar mill — Belagavi region
Panel
LT PCC Panel + 2× MCC Panels (75 HP & 150 HP feeders)
Rating
4000 A · 415 V · IP54
Expected commission
30 April 2026
Started 1 March 2026 · Stage 6 of 10
Stages
Customer kick-off & SLD review
1 Mar
Single-line diagram and load list approved.
Engineering — CAD drawings
5 Mar
Approval drawings issued; minor revision incorporated.
BOM finalisation & procurement
10 Mar
Siemens drives, BCH ACBs, WAGO terminals booked.
Sheet metal — enclosure fabrication
18 Mar
5 sections, powder-coated RAL 7035.
Bus-bar drilling & insulation
25 Mar
Copper bus-bars; CT/PT mounting pre-tested.
Component mounting & wiring
Now
Drives, contactors, OLRs mounted. Wiring at 70%.
Internal testing — IR / HV / function
Pre-dispatch inspection (customer)
Dispatch
Site erection & commissioning

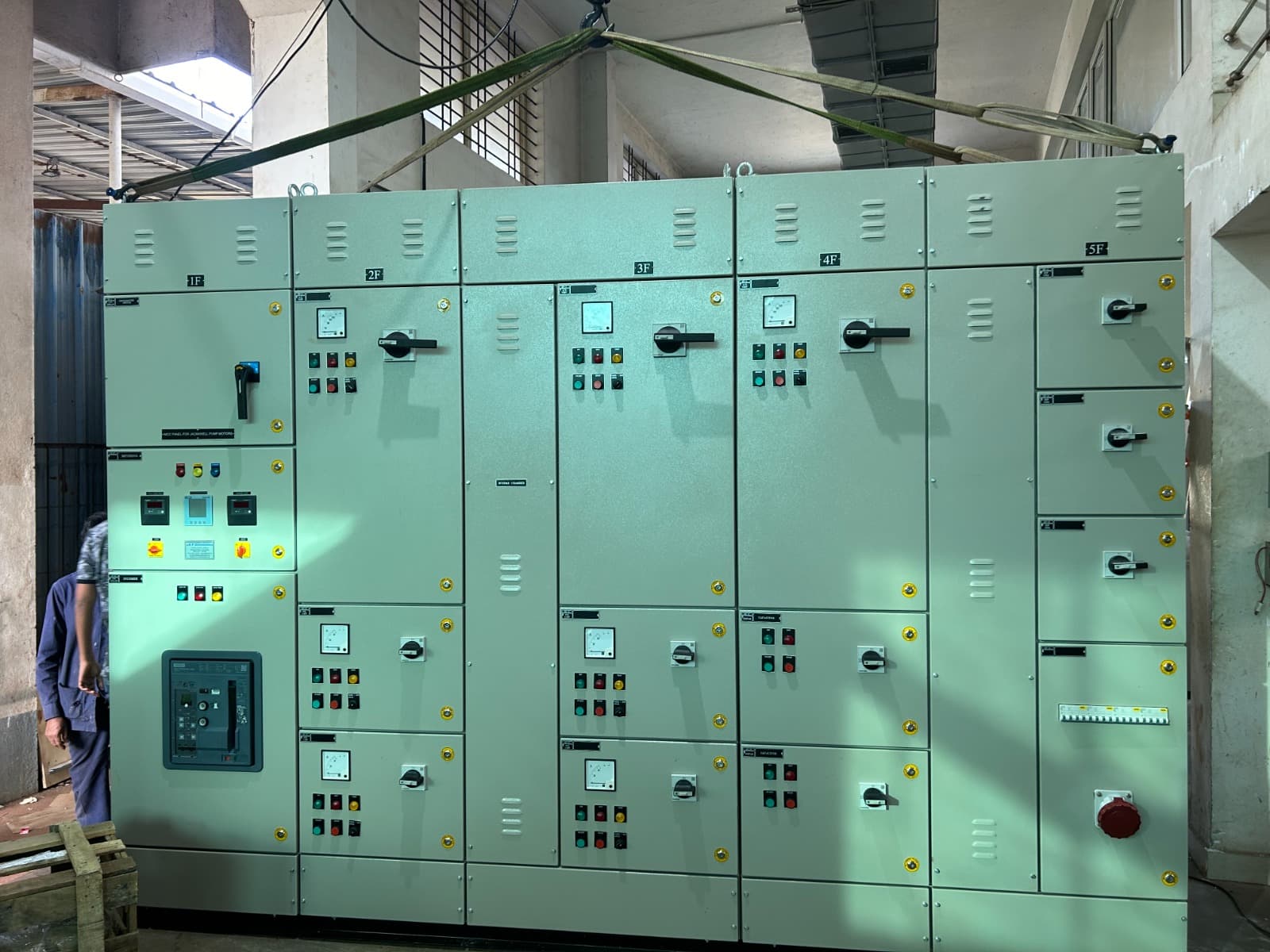

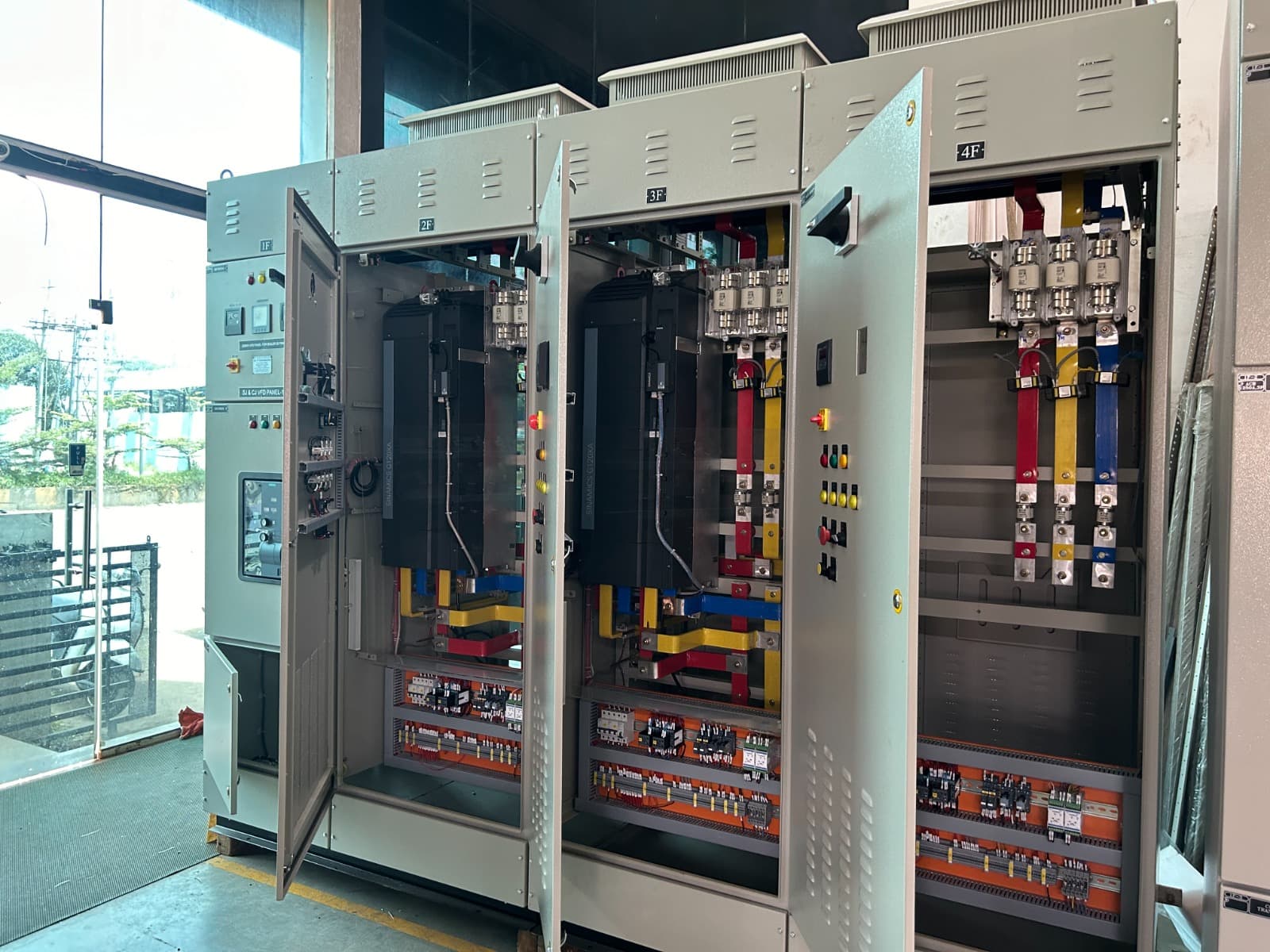

Build photos
Today, on the shop floor.
Backed by
- ASTA-TYPE-0003327 — IEC 61439-1/2 PMCC
- CPRI 50 kA short-circuit verified
- ISO 9001:2015 (QMS/B26710125)
Spare-parts BOM (preview)
Order spares — without explaining your panel again.
| Item | Qty | Vendor | Part |
|---|---|---|---|
| ACB 4000 A | 1 | BCH (Terasaki) | — |
| Sinamics G120X drive (75 HP) | 1 | Siemens | 6SL3220-3YE36 |
| Sinamics G120X drive (150 HP) | 1 | Siemens | 6SL3220-3YE40 |
| Contactor 250 A | 4 | BCH | — |
| WAGO TOPJOB®S terminal | 220 | WAGO | 2002-1201 |
| PLC S7-1500 | 1 | Siemens | 6ES7515-2AM02-0AB0 |
| HMI TP-900 | 1 | Siemens | 6AV2124-0JC01-0AX0 |
Need a spare? Need to log a fault?
Tap below — we'll know exactly which panel, which BOM and which Siemens / WAGO / BCH part you need.
